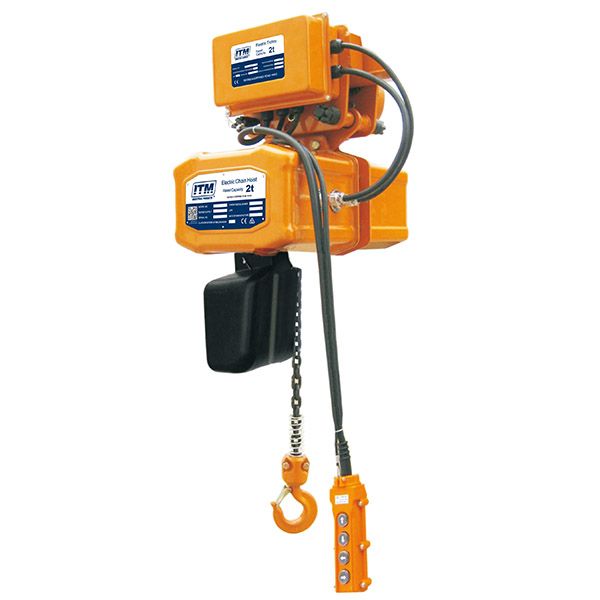

ITM 240V ELECTRIC CHAIN HOIST WITH ELECTRIC TROLLEY, 2 TONNE, 3 METRE LIFT

Stock Code:
TM9005-02003
Brisbane:
In Stock

Stock Locations

  • Melbourne:
    Out of Stock
  • Perth:
    In Stock
  • Tasmania:
    Out of Stock
RRP:
$4,649.00

Features

  • Japanese technology with dual braking system to ensure safe and reliable operation
  • Compact and light weight design
  • Weight overload limiter for safety
  • Thermal overload motor protection
  • Single phase, 240V motor
  • Upper and lower limit switches to prevent chain runout
  • Chain length can be altered by ITM to your required length
  • Tested & certified to AS 1418.2
  • Test certificate & user manual supplied

Specifications

  • Rated Capacity: 2 Tonne
  • Standard Lift: 3m
  • Hoist Motor: 1200W 240V 1P
  • Trolley Motor: 300W 240V 1P
  • No. of Chain Drops: 2
  • Chain Type: Grade 80 7.1mm
  • Lift Speed: 3m/min
  • Trolley Speed: 20m/min
  • Size of I-beam: 74-124mm
  • Min. Radius Of Curve: 1.1m
  • Net Weight: 107kg
  • Figure 1 Dimension A: 245mm
  • Figure 1 Dimension B: 245mm
  • Figure 1 Dimension C: 124mm
  • Figure 1 Dimension D: 176mm
  • Figure 1 Dimension E: 350mm
  • Figure 1 Dimension F: 610mm
  • Figure 1 Dimension H: 630mm
  • Figure 2 Dimension A: 296mm
  • Figure 2 Dimension B: 270mm
  • Figure 2 Dimension C: 264mm
  • Figure 2 Dimension D: 180mm
