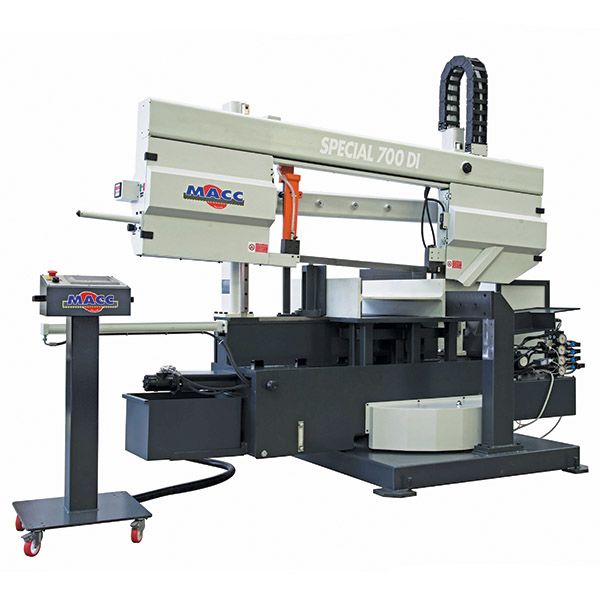

MACC DUAL COLUMN BANDSAW, WITH TOUCH SCREEN CONTROL PANEL AND VERTICAL VICE FOR BUNDLE CUT, 515 x 700MM CAP, SWIVEL HEAD, DUAL MITRE, VARIABLE SPEED 415V 3PH

Stock Code:
MB-700DI-MAX
Brisbane:
In Stock

Stock Locations

  • Melbourne:
    Out of Stock
  • Perth:
    Out of Stock
  • Tasmania:
    Out of Stock
RRP:
$99,900.00

Downloads

This item is considered bulky. Please Click Here to view more info on bulky goods.

Features

  • Italian made quality
  • Dual column for accuracy and rigidity
  • Touch screen control panel
  • Semi-automatic programmable operation
  • High-capacity variable speed control motor with inverter
  • Electro-mechanical blade tensioner
  • Vertical vice for bundel cutting
  • Safety emergency stop switch
  • Comes complete with stand & blade
  • Optional entry 2m x 700mm powered roller conveyors & exit 2m x 700mm powered roller conveyors & vertical rollers
  • Optional software for creating a series of cutting profiles from a computer for use on the Special 700 DI Max

Specifications

Motor 5.36hp Three Phase (415V)
Blade Speed Variable 20-90 mpm
Blade Size 41mm x 1.3mm x 5740mm
Weight 2460kg

Cutting Capacity
Cutting Angle Round Square Rectangle
90° 525mm 500mm 700 x 490mm
45° Right 380mm 380mm 500 x 380mm
60° Right 210mm 210mm 500 x 210mm
45° Left 525mm 490mm 500 x 490mm
