ITM S14 PRO KIT 350MM METAL CUTTING SAW, 240V, INC. 66T TCT MILD STEEL AND 110T CERMET STAINLESS STEEL BLADE
Stock Code:
S14-PROKIT
Brisbane:
In Stock
Stock Locations
-
Melbourne:In Stock
-
Perth:In Stock
-
Tasmania:In Stock
RRP:
$995.00
Our Brands
Features

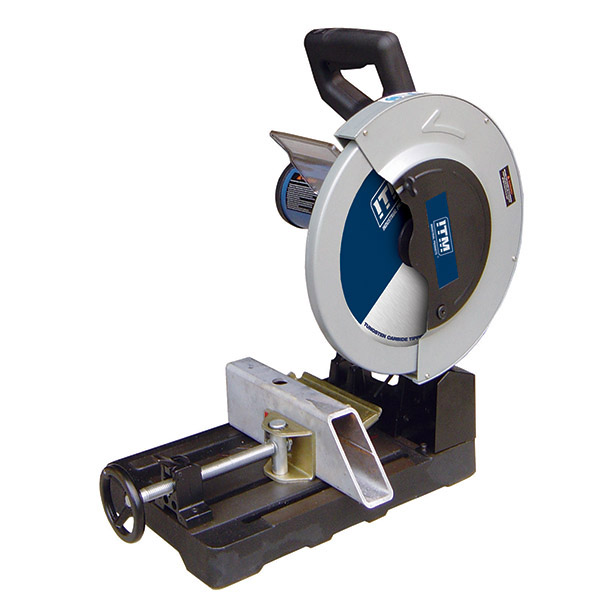

The S14 PRO KIT is a highly versatile 14" Metal Cutting Saw designed for cutting all metals including Stainless Steel and Mild Steel.
Operating at 1500rpm to deliver a cold cut which is burr free, clean, cold and precise.
If you are searching for a cost effective method for cutting Stainless Steel and Mild Steel metals, this saw is perfect for you. The heavy duty industrial construction offered by ITM makes this saw perfect for any professional workshop.

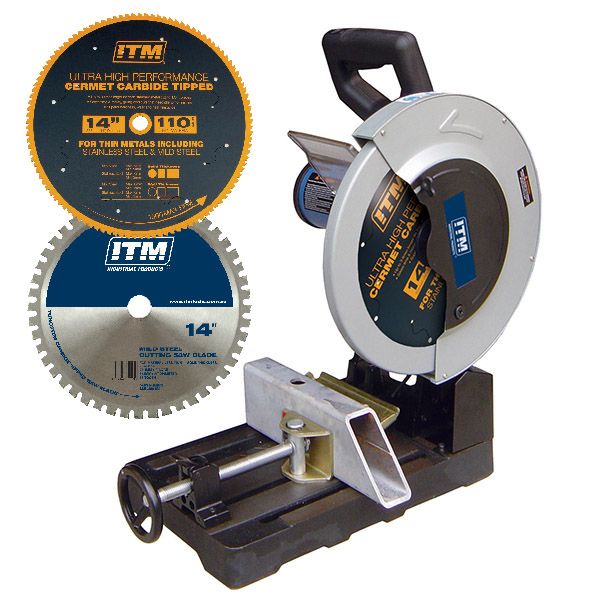

2 Blade Kit:
1x 350mm Tungsten Carbide Tipped blade with 66 teeth for cutting Mild Steel.

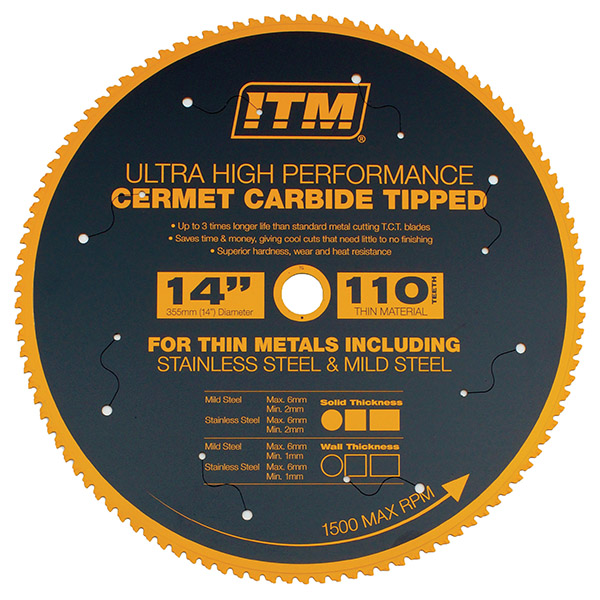

1x 350mm Cermet Carbide Tipped Blade with 110 teeth for cutting stainless steel. Perfect for stainless steel, mild steel, aluminium, thin material and thick material.
Saves time & money giving cool cuts that need little to no finishing, eliminating any need for grinding or cool down time.
The fully enclosed retractable guard increases user safety.
Heavy-duty vice 90° - 45°.
Pipe vice attachment.
12 months warranty.
Operating at 1500rpm to deliver a cold cut which is burr free, clean, cold and precise.
If you are searching for a cost effective method for cutting Stainless Steel and Mild Steel metals, this saw is perfect for you. The heavy duty industrial construction offered by ITM makes this saw perfect for any professional workshop.
1x 350mm Tungsten Carbide Tipped blade with 66 teeth for cutting Mild Steel.
1x 350mm Cermet Carbide Tipped Blade with 110 teeth for cutting stainless steel.
Specifications
| Motor | 3hp Single Phase (240V) | ||
| Blade Speed | Single Speed 1450rpm | ||
| Blade Size | 350mm | ||
| Blade Bore | 25.4mm | ||
| Weight | 29kg | ||
| Cutting Capacity | |||||
|---|---|---|---|---|---|
| Cutting Angle | Solid Round | Round | Square | Rectangle | |
| 90° | 25mm | 120mm | 120mm | 120 x 120mm | |
| 45° | 25mm | 90mm | 90mm | 120 x 90mm | |
Replacement Blades:
- SSBL350-MS for mild steel to 25.4mnm
- SSBL350-TS for thin mild steel to 6mm
- SSBL350-AL for aluminium to 25.4mm
- SSBL350-CERMET64 for stainless steel to 25mm
- SSBL350-CERMET110 for stainless steel to 6mm
Includes
Description
ALSO AVAILABLE:
14" 64 TEETH - GENERAL PURPOSE
CERMET CARBIDE TIPPED BLADE
Part No. SSBL350-CERMET64
- Blade Diameter: 355mm (14”)
- Number of Teeth: 64
- Blade Bore: 25.4mm (1”)
- Blade Kerf: 2.4mm
- Blade Thickness: 2.0mm
- Max. RPM: 1500
Solid Thickness
- Mild Steel: Max. 25mm, Min. 4mm
- Stainless Steel: Max. 10mm, Min. 4mm
Wall Thickness
- Mild Steel: Max. 12mm, Min. 2mm
- Stainless Steel: Max. 5mm, Min. 2mm
