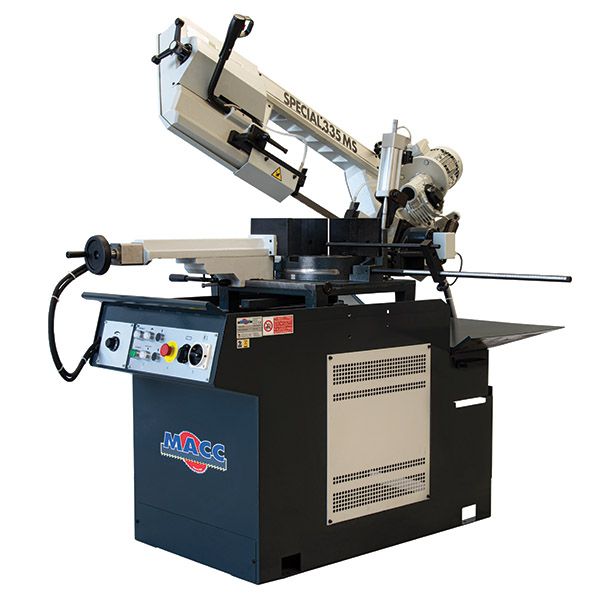

MACC BANDSAW, SEMI AUTO, 260MM CAP, SWIVEL HEAD, DUAL MITRE, 2 SPEED 415V 3PH
Stock Code:
MB-335MS-3
Brisbane:
In Stock
Stock Locations
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$16,995.00
Our Brands
Features
- Italian made quality.
- 2-way swivel head enables from 0° to 60° mitre cuts.
- Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Semi-Automatic function for large production type jobs. - Dual direction heavy-duty vice.
- Incorporated recirculating coolant system.
- Adjustable material stop for repetitive production.
- Safety emergency stop switch.
- 12 months warranty.
- Comes complete with stand & blade.
Semi-Automatic Function
- Operator Inserts Material
- Operator Press Start Button
- Vice Clamps Material
- Blade Motor Starts
- Bow Lowers
- Cuts Material
- Bow Rises
- Blade Stops
- Vice Opens
- Cylce Repeats
Specifications
| Motor | 1.5hp Three Phase (415V) | ||
| Blade Speed | 2 Speed 38 / 78 mpm | ||
| Blade Size | 27mm x 0.9mm x 3010mm | ||
| Weight | 415kg | ||
| Cutting Capacity | ||||
|---|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle | |
| 90° | 260mm | 250mm | 330 x 180mm | |
| 45° (R) | 215mm | 200mm | 210 x 160mm | |
| 60° (R) | 130mm | 130mm | 140 x 130mm | |
| 45° (L) | 180mm | 155mm | 225 x 60mm | |
Description
