MACC INCLINED TABLE LOADER TO SUIT 411AG, 391AVG, 702GA AND NTA370G
Stock Code:
MB-INCLINED-LOADER
Brisbane:
Out of Stock
Stock Locations
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
POA
Our Brands
Features

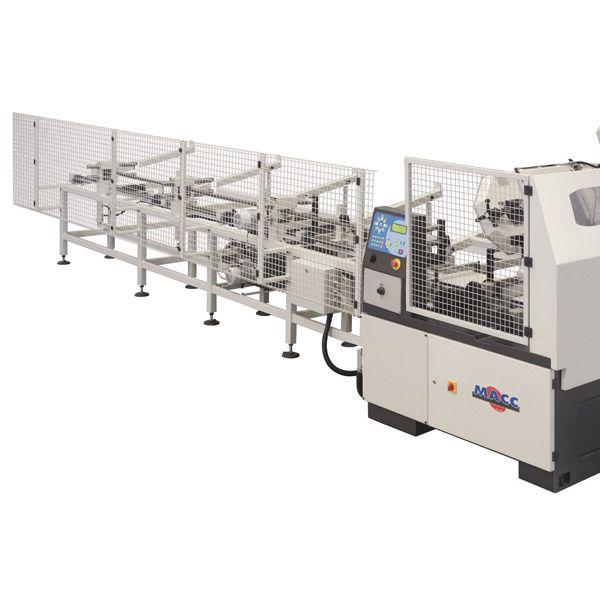

Material loader with inclined plane for automatically loading bundles of metal bars, tubes, solid bars, round, square and rectangular section in to bandsaws and circular saws. When the tail of the bar is no longer workable (scrap) the loader sends a new bar that expels the the previous scrap and positions the new bar for cutting the butting, the cycle is repeated until the bars positioned on the loader are exhausted.
The inclined plane has of length of 1025mm, with adjustment of the loading angle. It is possible for example to load 8 solid round bars Ø 120mm.
12 months warranty.
The inclined plane has of length of 1025mm, with adjustment of the loading angle. It is possible for example to load 8 solid round bars Ø 120mm.
12 months warranty.
Specifications
To suit MB-411AG-3, MB-391AVG-3, MB-702GA-3 and MB-NTA370G-3
LOADER CAPACITY:
LOADABLE MATERIAL:
Product does not include bandsaw pictured.
LOADER CAPACITY:
- Minimum material length 2m
- Maximum material length 6m
- Maximum load weight capacity 5000kg
- Loader weight 1200kg ~
- Power supply direct connection to the machine
LOADABLE MATERIAL:
- Round tubes or solid sections
- Min. Ø 16mm max ø 120mm
- Square section tubes or solids
- Min. 16 x 16mm
- Max. 100 x 100mm
Product does not include bandsaw pictured.
