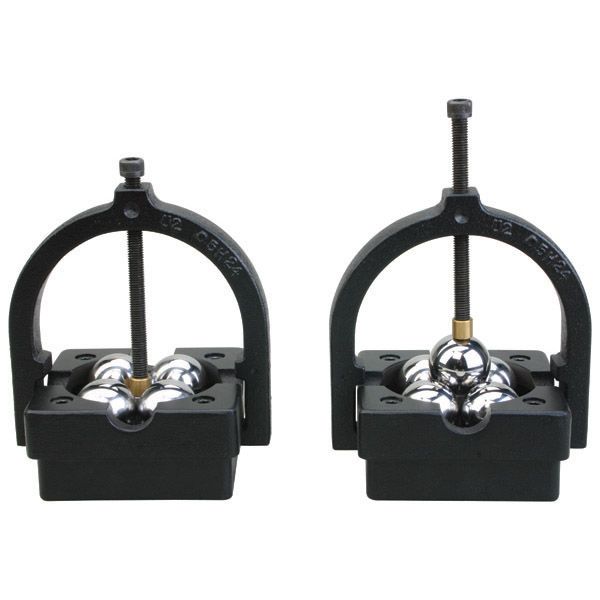

VB/BB/1-2 GROZ TOOL MAKERS BALL BEARING VEE BLOCK & CLAMP SET - MATCHED PAIR, 63MM 100KG CAPACITY
Stock Code:
GZ-02940
Brisbane:
In Stock
Stock Locations
-
Melbourne:In Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$730.00
Our Brands
Features
High precision Ball Bearing Vee Blocks are used to inspect & detect out of round conditions, defects and lobes without damage to both the parts being checked and the Vee Block itself.
Ideal for use where inspection set-ups are not otherwise possible using regular Vee Blocks. Design allows inspection of components from two angles by turning the spacer block 90°.
Vee Block bases are made from cast iron and use hardened 60HRC wear resistant balls with sphericity controlled to within 0.000025" (0.6microns) on the small and medium sets and 0.00005" (1.27 microns) on the large set. Balls are finished to 0.2 microinches.
Supplied in matched pairs, complete with two clamps and one test ball.
Matched pairs are controlled to within ±0.0002" (5 Microns)
Ideal for use where inspection set-ups are not otherwise possible using regular Vee Blocks. Design allows inspection of components from two angles by turning the spacer block 90°.
Vee Block bases are made from cast iron and use hardened 60HRC wear resistant balls with sphericity controlled to within 0.000025" (0.6microns) on the small and medium sets and 0.00005" (1.27 microns) on the large set. Balls are finished to 0.2 microinches.
Supplied in matched pairs, complete with two clamps and one test ball.
Matched pairs are controlled to within ±0.0002" (5 Microns)
Specifications
Code: VB/BB/1-2Maximum Capacity Without Clamps: 63mmClamping Capacity: 100kg
