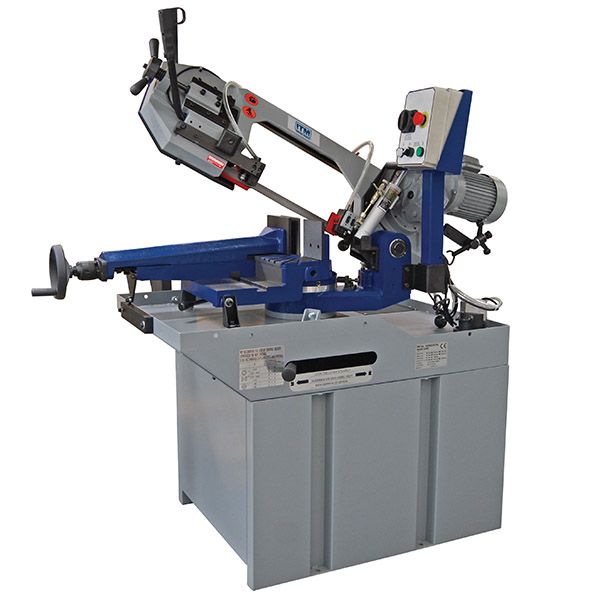

ITM BANDSAW, 227MM CAP, SWIVEL HEAD, DUAL MITRE, 2 SPEED 415V 3PH, HYD DOWN FEED
Stock Code:
WP275DS-3
Brisbane:
Out of Stock
Stock Locations
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
Due:
20/12/24
RRP:
$5,995.00
Our Brands
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- 2-way swivel head enables from 0° to 60° mitre cuts.
- Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material. - Dual direction heavy-duty vice.
- Incorporated recirculating coolant system.
- Brass chip brush to help prevent blade breakage.
- Adjustable material stop for repetitive production.
- Safety emergency stop switch.
- 12 months warranty.
- Comes complete with stand & blade.
- Optional blade tension gauge.
- Made in Taiwan.
Specifications
| Motor | 1.5hp Three Phase (415V) | ||
| Blade Speed | 2 Speed 36 / 72 mpm | ||
| Blade Size | 27mm x 0.9mm x 2460mm | ||
| Bed Height | 900mm | ||
| Weight | 285kg | ||
| Cutting Capacity | |||||
|---|---|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle | ||
| 90° | 220mm | 215mm | 260 x 105mm | ||
| 45° Right | 150mm | 145mm | 155 x 70mm | ||
| 60° Right | 90mm | 85mm | 90 x 80mm | ||
| 45° Left | 135mm | 110mm | 160 x 45mm | ||
