ITM BANDSAW, 220MM CAP, SWIVEL HEAD, 1 SPEED 240V 1PH, HYD DOWN FEED
Stock Code:
WP270SH-1
Brisbane:
In Stock
Stock Locations
-
Melbourne:In Stock
-
Perth:In Stock
-
Tasmania:Out of Stock
RRP:
$3,995.00
Our Brands
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- Swivel head enables from 0° to 60° mitre cuts.
- Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
- Incorporated recirculating coolant system.
- Brass chip brush to help prevent blade breakage.
- Adjustable material stop for repetitive production.
- Safety emergency stop switch.
- 12 months warranty.
- Comes complete with stand & blade.
- Optional blade tension gauge.
- Made in Taiwan.
Specifications
| Motor | 1.5hp Single Phase (240V) | ||
| Blade Speed | Single Speed 72 mpm | ||
| Blade Size | 27mm x 0.9mm x 2460mm | ||
| Bed Height | 840mm | ||
| Weight | 216kg | ||
| Cutting Capacity | |||||
|---|---|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle | ||
| 90° | 220mm | 215mm | 260 x 110mm | ||
| 45° Right | 150mm | 145mm | 155 x 110mm | ||
| 60° Right | 90mm | 85mm | 95 x 80mm | ||
Description

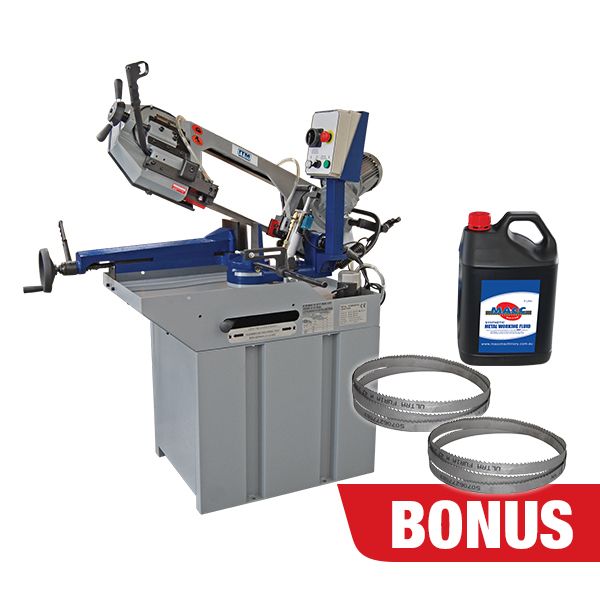

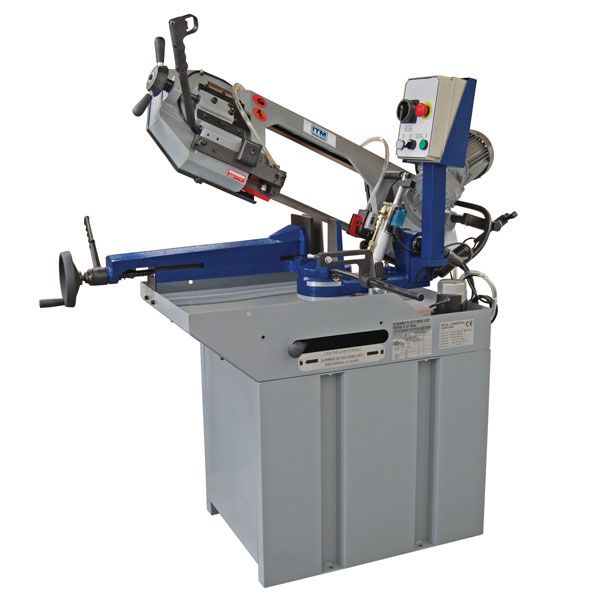

*Video and images are of WP270SH-1 240V
