Bulky

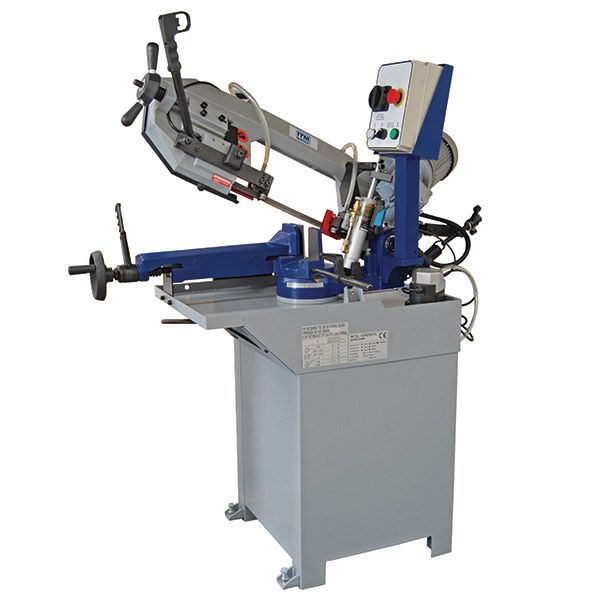

ITM BANDSAW, 170MM CAP, SWIVEL HEAD, 1 SPEED 240V 1PH, HYD DOWN FEED
Stock Code:
WP210SH-1
Brisbane:
In Stock
Stock Locations
-
Melbourne:In Stock
-
Perth:In Stock
-
Tasmania:Out of Stock
RRP:
$3,295.00
Our Brands
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- Swivel head enables from 0° to 60° mitre cuts.
- Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material. - Incorporated recirculating coolant system.
- Adjustable material stop for repetitive production.
- Safety emergency stop switch.
- 12 months warranty.
- Comes complete with stand & blade.
- Optional brass chip brush & blade tension gauge.
- Made in Taiwan.
Specifications
| Motor | 1hp Single Phase (240V) | ||
| Blade Speed | Single Speed 80 mpm | ||
| Blade Size | 19mm x 0.9mm x 2110mm | ||
| Bed Height | 895mm | ||
| Weight | 156kg | ||
| Cutting Capacity | |||||
|---|---|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle | ||
| 90° | 170mm | 170mm | 210 x 100mm | ||
| 45° Right | 120mm | 110mm | |||
| 60° Right | 70mm | 60mm | |||
