Bulky

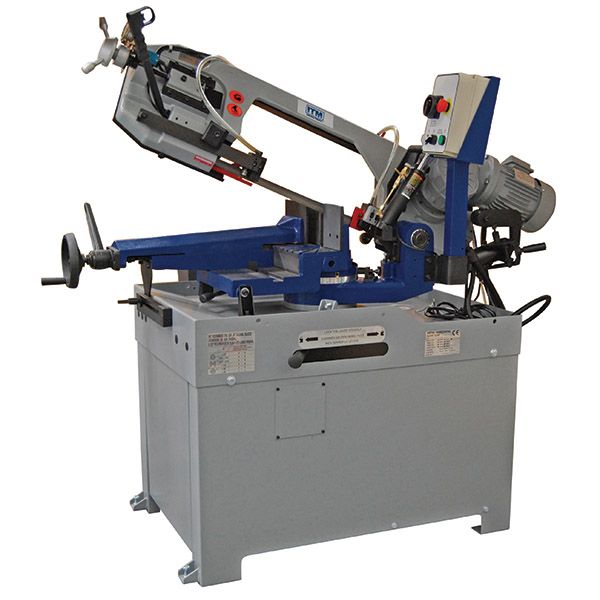

ITM BANDSAW, 240MM CAP, SWIVEL HEAD, DUAL MITRE, 2 SPEED 415V 3PH, HYD DOWN FEED
Stock Code:
WP310DS-3
Brisbane:
Out of Stock
Stock Locations
-
Melbourne:In Stock
-
Perth:In Stock
-
Tasmania:Out of Stock
RRP:
$7,995.00
Our Brands
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- 2-way swivel head enables from 0° to 60° mitre cuts.
- Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
- Variable speed motor for cutting a wide range of materials.
- Dual direction heavy-duty vice.
- Hydraulic blade tension gauge.
- Incorporated recirculating coolant system.
- Brass chip brush to help prevent blade breakage.
- Adjustable material stop for repetitive production.
- Safety emergency stop switch.
- 12 months warranty.
- Comes complete with stand & blade.
- Made in Taiwan.
Specifications
Motor | 2hp Three Phase (415V) | ||
Blade Speed | 2 Speed 36 / 72 mpm | ||
Blade Size | 27mm x 0.9mm x 2725mm | ||
Bed Height | 895mm | ||
Weight | 302kg |
Cutting Capacity | |||||
---|---|---|---|---|---|
Cutting Angle | Round | Square | Rectangle | ||
90° | 240mm | 235mm | 310 x 165mm | ||
45° Right | 195mm | 185mm | 195 x 130mm | ||
60° Right | 120mm | 85mm | 120 x 90mm | ||
45° Left | 165mm | 140mm | 195 x 60mm |
