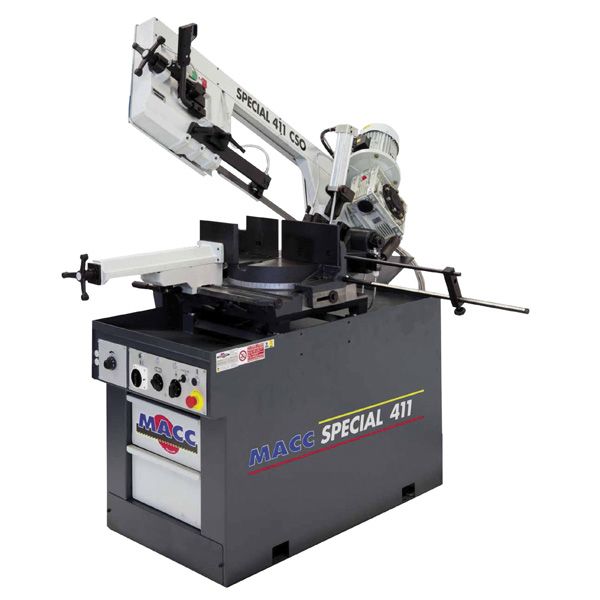

MACC BANDSAW, 300MM CAP, SWIVEL HEAD, DUAL MITRE, 2 SPEED 415V 3PH, HYD DOWNFEED
Stock Code:
MB-411CSO-3
Brisbane:
In Stock
Stock Locations
-
Melbourne:In Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$15,995.00
Our Brands
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- Italian made quality.
- 2-way swivel head enables from 0° to 60° mitre cuts.
- Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material. - Dual direction heavy-duty vice.
- Incorporated recirculating coolant system.
- Adjustable material stop for repetitive production.
- Safety emergency stop switch.
- 12 months warranty.
- Comes complete with stand & blade.
- Variable speed, three phase model available.
Specifications
Motor | 2hp Three Phase (415V) | ||
Blade Speed | 2 Speed 38 / 77 mpm | ||
Blade Size | 27mm x 0.9mm x 3200mm | ||
Weight | 530kg |
Cutting Capacity | ||||
---|---|---|---|---|
Cutting Angle | Round | Square | Rectangle | |
90° | 300mm | 280mm | 400 x 200mm | |
45° Right | 230mm | 215mm | 225 x 140mm | |
60° Right | 140mm | 140mm | 140 x 140mm | |
45° Left | 180mm | 160mm | 180 x 110mm |
