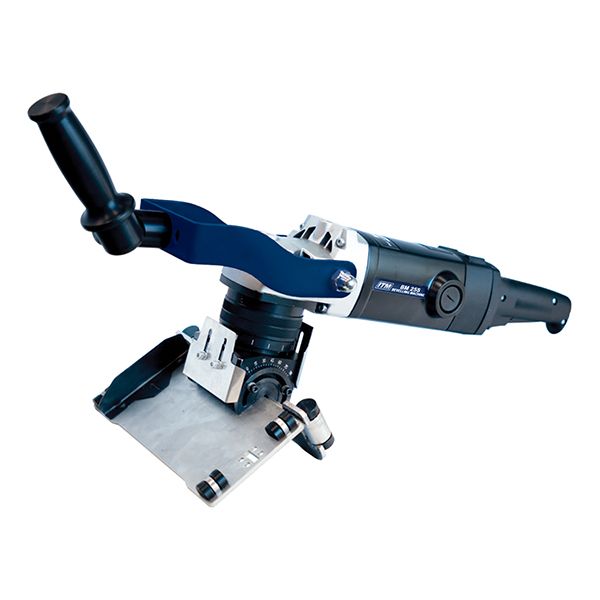

BM25 PORTABLE BEVELLER FOR STAINLESS STEEL, MAX BEVEL WIDTH 25MM, 240V MOTOR
Stock Code:
WA-BM25S
Brisbane:
Out of Stock
Stock Locations
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
Due:
07/01/25
RRP:
$7,425.00
Our Brands
Features
The WA-BM25S is an easy-to-use, portable heavy-duty machine designed to machine stainless steel. The beveller is equipped with a powerful motor and fitted with a face milling bevelling head, allowing smooth operation and exceptional efficiency. The WA-BM25S allows milling of straight edges with a bevel width up to 25mm, and the variable spindle speed makes it easy to optimise cutting conditions. It features a continuously adjustable bevel angle between 0 and 90 degrees and milling depth for full control of the milling process. The beveller is equipped with a roller guide, which makes it easy and light to operate. All components of the guide are made of stainless steel to protect against contamination. The WA-BM25S has a state-of-the-art electronic motor overload module protecting the operator, the machine and the tooling.
- Contamination-free stainless steel processing
- Maximum 25 mm bevel width (more than one pass could be required)
- The continuously adjustable bevel angle between 0 and 90 degrees – one milling head in use only
- Powerful motor with electronic speed control between 1800–5850 rpm to work with various materials
- A single head works with the face milling method, allowing less milling resistance and effort for the operator
- Overload protection to prevent motor damage
- 2 Year warranty
Specifications
- Voltage: 1~ 110-120 V, 50-60 Hz
- Voltage: 1~ 220-240 V, 50-60 Hz
- Power: 2200 W
- Spindle speed (without load): 1800-5850 rpm
- Maximum bevel width (b, Fig. 1): 25 mm (1")
- Maximum depth of cut (d, Fig. 1): 12.5 mm (1/2")
- Bevel angle (ß, Fig. 1): 0°-90°
- Bevel angle (recommended): 15°-75°
- Minimum workpiece thickness: 2 mm (0.08")
- Weight: 12.5 kg (27 lb)
Description
Comfort And Ergonomics Of Work:
- Each user can individually adjust the position of the grip and handle
- Grip can be rotated through 360 degrees
- Adjustable grip and handle enable comfort of work for both right and left-handers and operators of different heights
- The handle can be tilted to the desired angle
- Guide set with rollers can be rotated through 360 degrees
- 2 possible positions of rollers (wide and narrow)
Work At 0°:
- Facing process to produce a flat surface such as lands / root faces
Work At 90°:
- Removal of the upper layer of 15 mm in width
- Lowering of the plate edge height
Stainless Steel Machining Step-by-Step
- Gradually increase the head penetration into the material to enlarge bevel width step-by-step
- Do not exceed the maximum head penetration in successive passes (see table below)
- It is recommended to remove a similar volume of stainless steel in each successive step
| Pass No. | Max. In-depth Progress of Milling Head [mm] | Bevel Width Obtained [mm] |
|---|---|---|
| 1st | 3.0 | 6.0 |
| 2nd | 2.3 | 10.6 |
| 3rd | 2.0 | 14.6 |
| 4th | 1.6 | 17.8 |
| 5th | 1.4 | 20.6 |
| 6th | 1.2 | 23.0 |
| 7th | 1.0 | 25.0 |
